88-91 Honda D Series Engine Mount Hardware Kit
Complete OEM-spec hardware kit for replacing all engine and transmission mount fasteners on your 1988-1991 Honda Civic/CRX D Series swap or restoration. Every mount on the vehicle is covered — rear trans bracket, passenger side trans mount, front mount, and driver side mount — so you can torque everything down with fresh, correctly-sized hardware instead of reusing worn or rusted factory bolts.
All fasteners are JIS spec, matching the head and socket sizes used on factory Honda hardware — no need for the 13 or 15mm sockets here. Bolt lengths are closely matched to OEM, with minor variances on some pieces due to sourcing. All hardware is a yellow zinc finish.

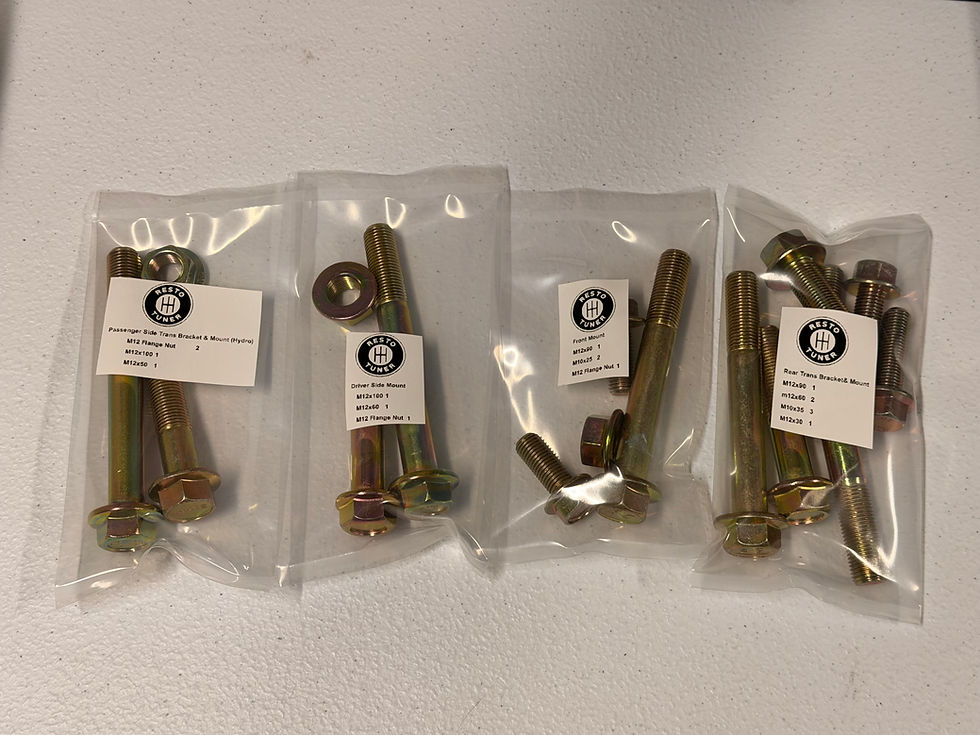

Kit Includes:
Rear Transmission Bracket & Mount
M12x120 — Qty 1
M12x50 — Qty 2
M12x30 — Qty 1
M10x25 — Qty 3
Passenger Side Transmission Bracket & Mount
M10x20 — Qty 3
M12x25 — Qty 1
M12 Flange Nut — Qty 1
M12x100 — Qty 1

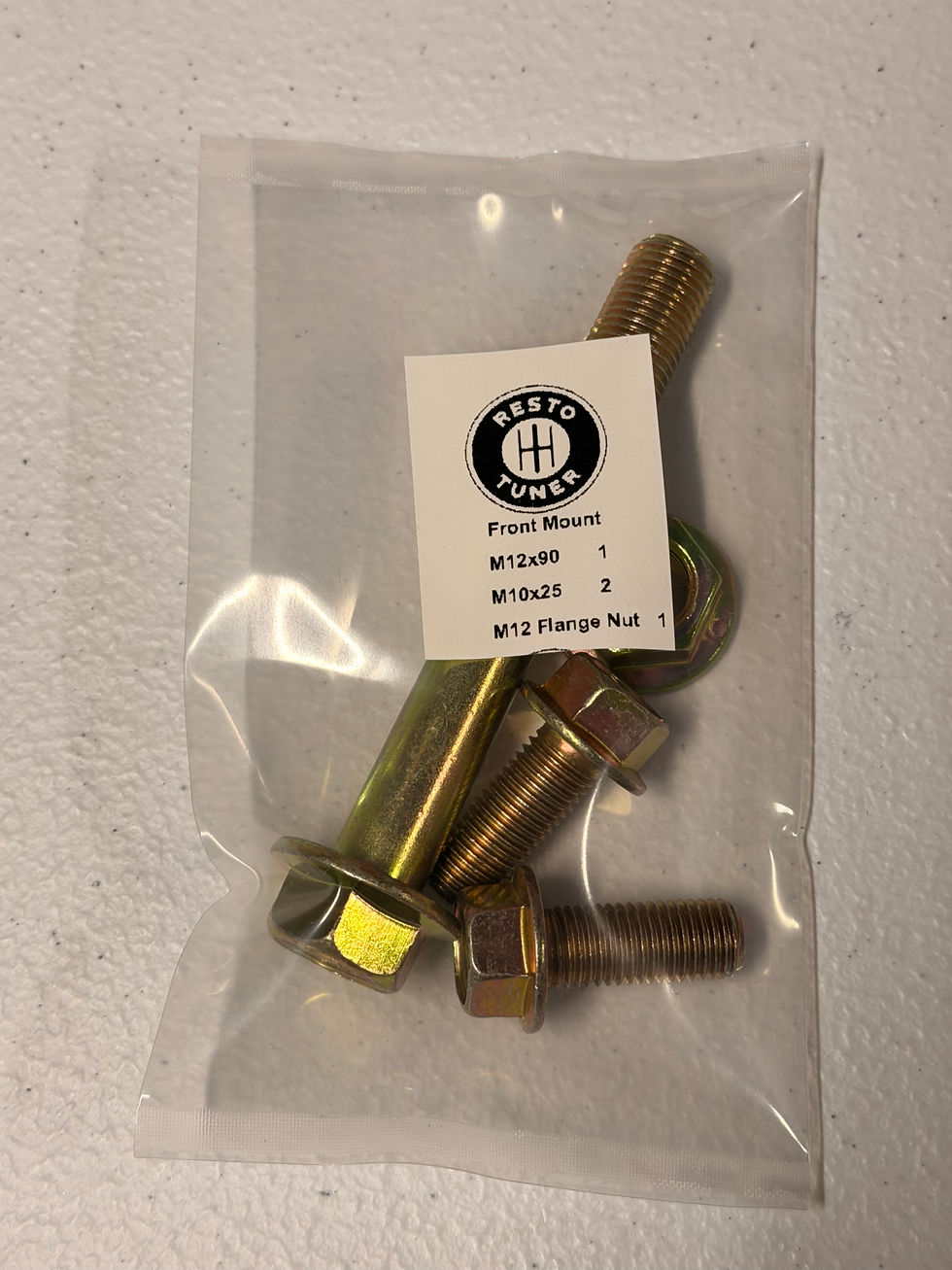

Front Mount
M12x90 — Qty 1
M10x25 — Qty 2
M12 Flange Nut — Qty 1

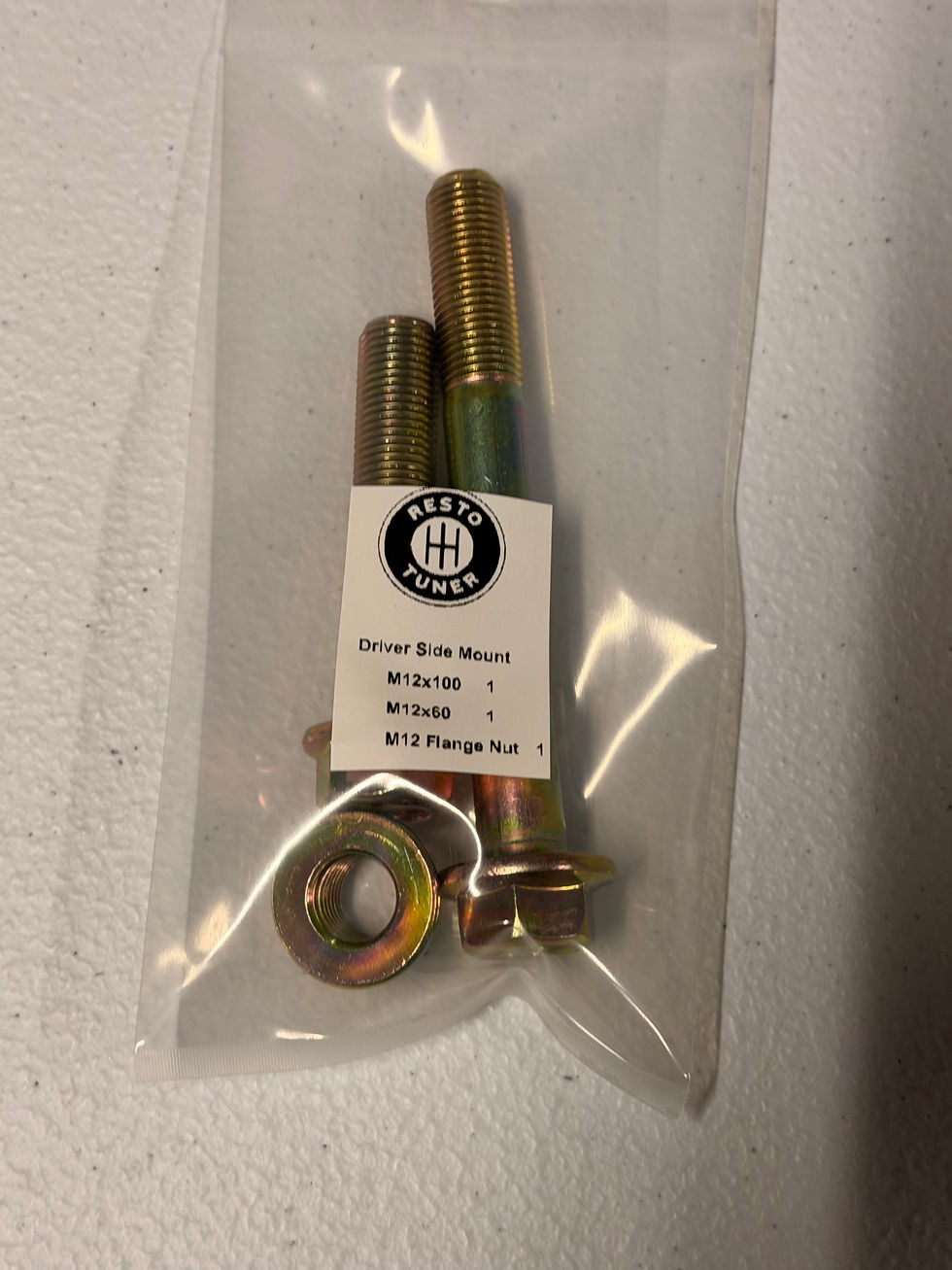

Driver Side Mount
M12x100 — Qty 1
M12x60 — Qty 1
M12 Flange Nut — Qty 1
Fits: 1988-1991 Honda Civic & CRX with D Series engines
Note: This kit covers mount-to-bracket and bracket-to-chassis/engine hardware only. This kit does not include engine post mount to engine hardware. Always verify bolt lengths against your specific mount configuration before installation, especially on swap applications.
